Cnc Jaws

• Accuracy
• High concentricity and repeatability

• Application
• CNC Lathe, Machining Centers, Milling Machines

• CNC
• Yes

• Coating
• Uncoated / Plain

• Cutting Speed
• Suitable for cutting speeds up to 350 m/min

• Hardness
• 28-32 HRC (soft jaws, can be hardened as required)

• Load Capacity
• Up to 1500 kg clamping force (varies with size and type)

• Machine Type
• CNC Lathe, CNC Turning Centers

• Material
• Mild Steel / Alloy Steel

• Method
• Machinable to custom profile as per job requirement

• Shape
• Rectangular block

• Size
• Standard and custom sizes available

• Spindle Speed
• Compatible with high spindle RPM (>3000 RPM)

• Surface
• Other , Polished / Ground

• Thread Type
• Other, Metric threads

• Tolerance
• 0.02 mm

• Type
• Other, Soft Jaws

• Usage & Applications
• Workholding for precision machining

• Use
• For securely holding workpieces in CNC chucks

• Weight
• Depends on size, typically 500g - 1.5kg per jaw

• Accuracy
• High gripping accuracy

• Application
• Turning, Facing, Drilling, Milling operations

• CNC
• Yes

• Coating
• Anti-corrosive coating

• Cutting Speed
• Suitable for high-speed machining (up to 2500 RPM)

• Hardness
• Hardened jaws: 50-55 HRC

• Load Capacity
• High load holding capability (up to 1000 kg, size dependent)

• Machine Type
• CNC Lathe, CNC Turning Center

• Material
• High-grade steel

• Method
• Independent jaw adjustment

• Shape
• Round

• Size
• Standard sizes: 160 mm - 400 mm

• Spindle Speed
• Maximum up to 2500 RPM

• Surface
• Other , Precision ground, smooth finish

• Thread Type
• Other, Internal thread

• Tolerance
• 0.01 mm

• Type
• Other, 4 Jaw Chuck

• Usage & Applications
• Used for clamping irregular as well as regular shaped workpieces, suitable for CNC lathes and machining centers

• Use
• Work holding for machining

• Weight
• Varies with size; approx. 7-28 kg

• Accuracy
• High Precision

• Application
• Lathe and CNC Turning Centers

• CNC
• Yes

• Coating
• Black Oxide or Phosphate

• Cutting Speed
• Up to 4000 RPM

• Hardness
• 55-60 HRC

• Load Capacity
• Up to 5 tons

• Machine Type
• CNC Turning, CNC Lathe

• Material
• Alloy Steel

• Method
• Induction Hardened, Precision Ground

• Shape
• Rectangular

• Size
• Standard or as per requirement

• Spindle Speed
• Compatible with high-speed spindles

• Surface
• Other , Ground & Hardened

• Thread Type
• Other, Metric/Standard

• Tolerance
• 0.02 mm

• Type

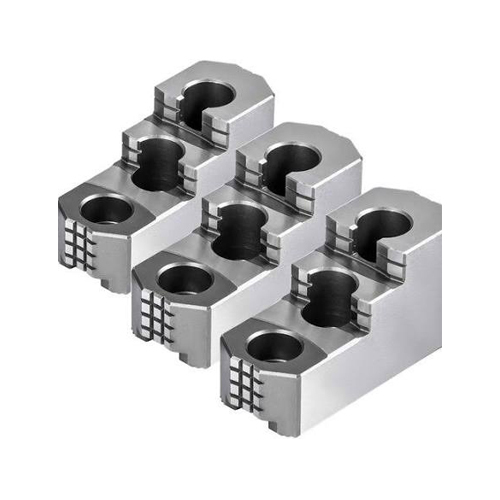

• Other, Hard Jaw

• Usage & Applications
• Securing workpiece during machining

• Use
• Workholding/Clamping on CNC Machines

• Weight
• Varies (0.5 kg to 2 kg)
